Original Earth Helical Piers Underpinning Screw Pile Ground Helical Anchor

Brand Name : NTS

Model Number : NTS99

Certification : ISO9001 CE

Place of Origin : China

MOQ : 2000pcs

Price : as discussed

Supply Ability : 10000 per month

Delivery Time : 35 days

Packaging Details : boxes ,100pcs/box with a plastic bag

Material : 16Mn Q345

Surface : hot dip galvanized

Size : 2 7/8 3 1/2

Tube thickness : 6mm 7mm 8mm

Helix dia : 8" 10" 12" 14"

length : 6' 7' 8' 10'

Contact Now

2 7/8"Foundation Construction Underpinning Screw Pile Ground Helical Anchor/ Earth Helical Piers

Helical Piers--Description:

The original helical pier was designed as a wooden shaft with an iron helix for use in lighthouse foundations.
Today, helical piers are one of the two most common types of structural piering devices for residential foundation applications in use today. Helical piers are an excellent choice for foundation repair and stabilization when light
structural loads, unstable rock foundations or very deep load bearing stratums are present.

Ground Helical Anchor& Earth Helical Piers--Advantages
.A time-proven, versatile, and technically sound system.
· Lower cost and faster installation than other methods
· Installs quickly with small or handheld equipment.
· Can be installed in limited-access areas or tight access.
· Site cleanliness and minimize damage to landscape.
· Soil load bearing capacity is tested during installation.
· Helical anchors available with single, double and triple helix blades.

Shaft Screw Piles For Foundation

Product name	Round Tubular Helical Screw Anchor
Shaft material	Seamless high tensile pipe, confirms to ASTM A500 GRADE B
Helices material	ASTM A36 hot rolled plate
Round Shank Anchors	Hot Dip Galvanized to meet ASTM Specification A153
Size	2 3/8”--8 5/8” round tube shaft
Length	3ft/5ft/7ft/10ft etc
Helix Blade	8", 10", 12" and 14" in diameter
Blade thickness	3/8’’ OR 1/2’’
Welding Standard	AWS D1.1
Finish	Hot dipped zinc coating, Painted, Powder coating, corrosion protection conform to ASTM A153 standard.
Round Shank Anchors	Hot Dip Galvanized to meet ASTM Specification A153
Helices Leading edge	Beveled 45 degrees
Sample	Available
OEM service	Available
Markets	Europe, North America, South America
Greater Section Modulus Strength to resist Twisting and Deflection. Greater Load Capacities.

Original Earth Helical Piers Underpinning Screw Pile Ground Helical Anchor

Hot dip galvanized helical pile made by auto welding mahcine not by hand :Foundation system

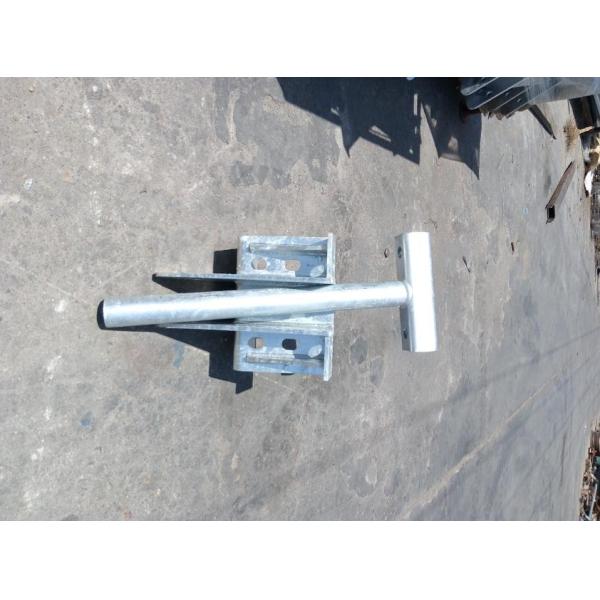

OTHER ACCESSORIES LIKE T BAR, EXTENSION, CAP,UNDERPINNING FOUNDATION :

WELDING MACHINE MADE BY AUTO MACHINE NOT BY HAND:

Original Earth Helical Piers Underpinning Screw Pile Ground Helical Anchor
