Q235 Material Earth Auger Anchors 48" 5/8" Rod With 6" Helix Painted

Product Categories
Qingdao Taosheng Hardware Products Co., Ltd
Contact Now

Q235 Material Earth Auger Anchors 48" 5/8" Rod With 6" Helix Painted

Brand Name : NTS

Model Number : NTS212

Certification : ISO9001 CE

Place of Origin : China

MOQ : 2000pcs

Price : as discussed

Supply Ability : 50000per month

Delivery Time : 30 days

Packaging Details : boxes ,100pcs/box with a plastic bag

Material : Q235

Surface : hot dip galvanized ,red painted

Rod size : 1/2" 5/8" 3/4"

Length : 15" 30" 48"

Helix : 150 200 250 300mm

Helix thickness : 6mm 8mm

Eye shape : welded offset eye

Contact Now

High Quality 48" 5/8" Rod with 6" Helix Painted Auger Earth Anchor

Product Information

Professional Grade Earth Anchor
  • Helix OD: 6"
  • Length: 48"
  • Rod Diameter: 5/8"
  • Finish: Painted
  • Approx. Holding Capacity (see notes): 4,000 lbs.*
  • Shipping Weight: 6.2 lbs.
  • Ships Common Carrier only.

  • One piece Auger Earth Anchors may be used to attach guy wires for securing structures such as metal buildings, tents, docks; for anchoring erosion control barriers as well as for many other applications. Anchors are installed by turning the anchor into the ground, utilizing a turning bar placed through the anchor's welded eye. Anchors can be installed by hand or by machine. Anchors have a welded eye, heavy duty helix welded on both sides and an angled point to ease installation.
    *Holding Capacity: Auger Earth Anchors correctly installed in normal soils.
    Holding capacity is dependent on soil conditions and density. Special installation consideration must be taken in rocky soils. To achieve optimal holding capacity auger anchors must be screwed deeply into the ground. After inserting a metal rod through the anchor eye, screw the anchor into the ground or use a power driver. Anchor must be installed in line with the direction of the guy load. Anchor can also be imbedded in concrete for a more permanent installation.

SPECIFICATION FOR AUGER EARTH SCREW ANCHOR

Item Earth anchor

G.W. (kg)

N.W. (kg)

Cube (foot)

40' container

40'floor loaded container

15"-3"*9/16

1.76

1.54

0.04

24800

25000

30"-3"*9/16

2.64

2.42

0.08

16500

17000

40"-4"*9/16

3.74

3.3

0.14

11500

11788

48"-6"*5/8

5.94

5.5

0.35

5328

6080

15"-3"*3/8

1.1

0.92

0.04

38880

47150

15"-3"*1/2

1.43

2.32

0.04

28500

29200

30"-4"*1/2

2.64

2.42

0.11

16500

16600

Here are the pictures of the helix anchor

Q235 Material Earth Auger Anchors 48" 5/8" Rod With 6" Helix Painted

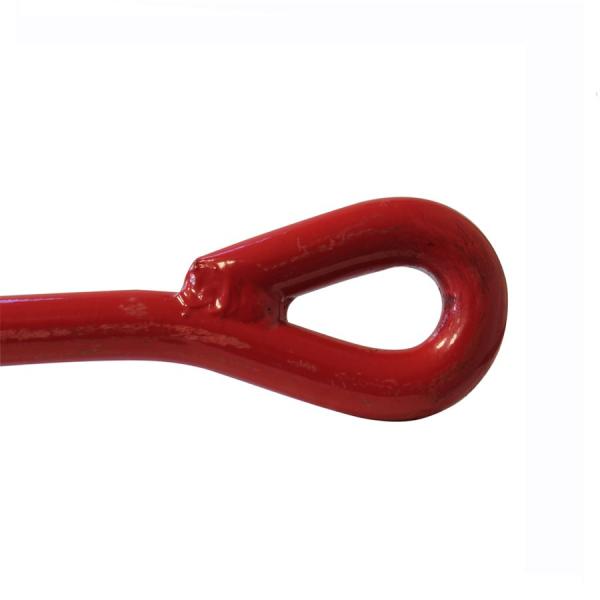

DETAILS VIEW OF THE OFFSET EYE WELDING QUALITY

Q235 Material Earth Auger Anchors 48" 5/8" Rod With 6" Helix Painted

DETAILED VIEW OF WELDED HELIX BLADE TO THE ROD

Q235 Material Earth Auger Anchors 48" 5/8" Rod With 6" Helix Painted

Packing pictures: packing size and quantity depends on the rod and plate diameter

Q235 Material Earth Auger Anchors 48" 5/8" Rod With 6" Helix Painted
